ZEISS customers were keen to learn how to generate CAD models that would guarantee a metrologically-correct transfer of the Model-Based Definition to the inhouse ZEISS CALYPSO software. Zeiss and PTC partnered to define and optimize existing processes and define a new way of working.
ZEISS: Market leader in CNC-based Coordinate Measuring Machines
Carl Zeiss Industrielle Messtechnik GmbH is the world market leader in Computer Numerical Control (CNC) coordinate measuring machines and offers innovative technology solutions in more than 32 sales and service organizations worldwide.
The product range includes hardware (portal measuring machines, industrial computer tomographs, surface contour and measuring machines, microscopes) as well as software, service, and accessories. All system-relevant modules such as the control system, sensors, measuring systems, accessories and software are developed and manufactured in-house, including the CAD-based ZEISS CALYPSO measuring software.
ZEISS Quality Excellence Center: Measurement Services, Training and Technological Innovations
In over 60 ZEISS Quality Excellence Centers worldwide, customers can count on fast solutions for their metrology challenges. Philipp Willier, head of the centers in Cologne and Ostfildern, Germany, says, "We serve customers from many industries with applications ranging from microelectronics to the construction of wind turbines and commercial aircraft. In the ZEISS Quality Excellence Centers, we have the most modern ZEISS measuring machines available for training, measurement services, and customer presentations. We measure and digitize components and support our customers in offline programming and in the application of their equipment." The range of services includes consultation on metrological challenges, contract and job measurement, part inspection using computed tomography, and online services to ensure machine availability. The ZEISS CALYPSO measurement software can solve virtually any measurement task.
Creating Inspection Plans From 2D Drawings
Until now, the standard procedure for creating inspection plans was to import a 3D model from the CAD system into ZEISS CALYPSO and then use the software to define the measurements based on a 2D technical drawing. For example, a circle could be measured by probing three or more points, and a cylinder by taking circle measurements at different heights.
To carry out this procedure, the user interpreted the 2D drawing and transferred the information to the 3D model and the ZEISS CALYPSO inspection plan. Although the ZEISS CALYPSO measuring software provides the user with functionality that simplifies the programming, the procedure is time-consuming and harbors a certain potential for error.
A further challenge with this procedure is that 3D geometry, dimensions, tolerances, and other notes are often defined separately. A drawing is derived based on the 3D geometry, in which dimensions and geometric tolerance specifications are then stored. These dimensions and tolerances become the nominal values for the measurement and are linked to a measuring point in ZEISS CALYPSO.
Creating Inspection Plans Automatically With Model-based Definition
Model-Based Definition (MBD) technology enable the definition of dimensions and geometric tolerances as PMI directly on the 3D model. MBD data not only replaces the drawing, it is also machine-readable, especially when defined according to the ISO GPS system (Geometric Product Specification).
Large Demand Among Joint Customers of PTC and ZEISS
Beata Schoenberg, product manager for ZEISS CALYPSO and Metrology Standards software, recalls the beginning of the collaboration project with PTC, "Philipp Willier and I got into a conversation with Katrin Schillack from PTC about a year ago about how we could better support our many joint customers in their work. It turned out that MBD had great potential to simplify the process significantly." Katrin Schillack, a CAD specialist at PTC, adds, "Many PTC customers use ZEISS measuring devices, and we are hearing the topic of MDB becoming increasingly important in customer discussions. So, it made sense to work together to create the conditions for the data stored in MBD to be used in ZEISS CALYPSO."
The GPS Standards Require a Rethink on the Part of the Designer
Schoenberg explains, "The GPS standard requires the designer to rethink when creating dimensions: today, the length of an edge or a theoretical intersection between two surfaces is usually dimensioned – but such ‘dimensions’ cannot be touched with a tactile measurement sensor. PMI should not be defined on the centerline of a cylinder in this case, but it is always a matter of tying dimensions and tolerances to touchable geometric elements. “For an MBD-compliant PMI definition, one links the information to surface elements. Length dimensions are defined over the two parallel surfaces, and bores are defined on the cylindrical surface. Creo checks the PMIs for plausibility in real time during definition and marks nonsensical entries in red.”
Intelligent Interface Between Creo and ZEISS CALYPSO Automates Data Transfer

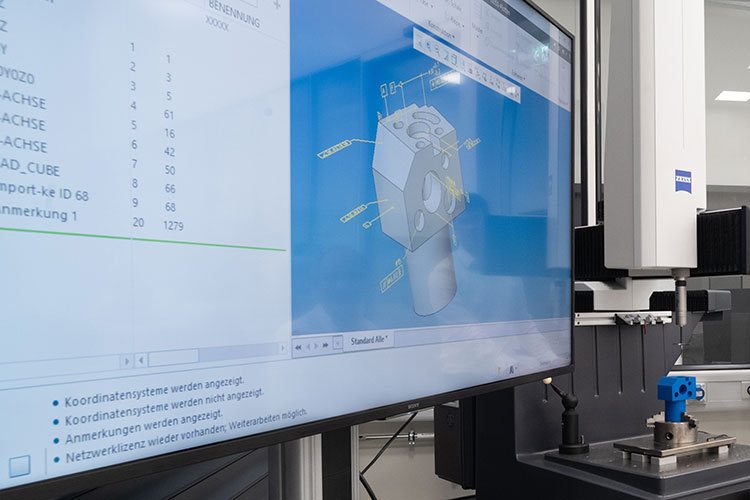

ZEISS had already integrated a PMI interface and a converter for reading MBD data in the 2016 ZEISS CALYPSO software version. With the help of the PMI information and the associated geometry, the latest ZEISS CALYPSO software version suggests the appropriate measurement strategy. For example, for a cylinder, the software automatically sets the measurement strategy by defining that probing be done in several circles over the length of the cylinder. The complete definition of the measurement characteristics and inspection features in PMI's measurement plan is automatic. The measurement technician must only define the orientation of the part on the measuring device and the probes or sensors, optimize the sequence of measurements if necessary, define traverse paths, and perform a collision check. A simulation with graphical traverse path display makes it easier to check the automatically generated measurement plan. Of course, it is also possible to include only selected PMIs in the measurement.
"A major advantage here is that the ZEISS CALYPSO measuring software also uses the designations of the inspection characteristics from the CAD system," explains Schoenberg. She adds, "This means that the design engineer and measurement technician always know that they are talking about the same element. And the time savings are impressive; creating each measuring element and each inspection characteristic, including the measuring strategy, used to take about two minutes, which added up when there were dozens of characteristics on a component.”
Time savings are not the only benefit, the ZEISS CALYPSO measuring software also helps generate a cleanly defined MBD model. Schoenberg explains, “Today, you look through the automatically created inspection plans, optimize the sequence, define traverse paths, and can then perform your measurements directly on the corresponding measuring device. In doing so, you can be sure that the automatic inspection in Creo will detect redundant measurements or PMIs that are not tied to a geometry, and the designer will deliver a cleanly defined MBD model."
PTC and ZEISS: Shared Interest to Further Develop MBD
"PTC and ZEISS have a common interest in developing MBD because ZEISS offers a complete portfolio of networked machines," says PTC expert Katrin Schillack. "ZEISS is extremely innovative, fast and flexible, and has proven to be an excellent partner for joint development."
Willier adds, "The topic of GPS requires designers to think about metrology as early as the definition of their geometries. We work in our training courses to awaken this understanding, and the close linking of the designer's and measurement engineer's tools supports this."
Close, Collaborative Partnership Creates Added Value for PTC and ZEISS Customers
Beata Schoenberg adds, "At ZEISS, we have been working with Creo in our design department for many years and therefore have a knowledge advantage here compared to other systems— which is why this collaboration made sense.”
Not only did ZEISS have a deep familiarity with Creo, but PTC also provided the strong partnership necessary to continue development of their MBD solution. “PTC is an excellent partner and we are working hard to permanently develop the solution further so that our customers can quickly benefit from the advantages of MBD. Specifically, this means quality optimization and shorter product development cycles, as well as a high degree of digital and automated processes," says Schoenberg.
ZEISS’s next step is to provide advanced MBD training, but that is only the beginning. Schoenberg adds, "Currently, we are planning to roll out MBD advanced training between Creo and ZEISS CALYPSO for joint customers in 2021. The collaboration between ZEISS and PTC has resulted in a solution that not only promises efficiency and time savings, but also brings the two disciplines of design and quality control closer together."
“Today, you look through the automatically created inspection plans, optimize the sequence, define traverse paths, and can then perform your measurements directly on the corresponding measuring device. In doing so, you can be sure that the automatic inspection in Creo will detect redundant measurements or PMIs that are not tied to a geometry, and the designer will deliver a cleanly defined MBD model."
- Beata Schoenberg product manager for ZEISS CALYPSO and Metrology Standards software
