Relations Manager And Parameters

While Relations have always been a powerful way to build intelligence into a model, they have not necessarily provided the easiest way. The new Pro/ENGINEER Wildfire helps develop these functions through a wizard-like user interface.

Usability In Building Relations

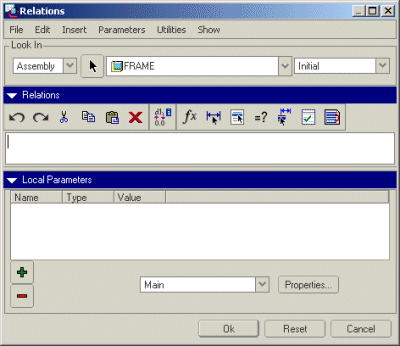

In Pro/ENGINEER Wildfire, the most commonly used capabilities and most familiar software tools in the Relations Manager have been consolidated for easy and immediate access. At the same time, the more advanced capabilities are now hidden until needed. Also, Relations that are calculated after geometry are provided specifically for system mass property calculations.

  • Using Undo and Redo
  • Using Cut, Copy, Paste and Delete
  • Toggling Between Dimension Values and Names
  • Showing Dimensions On Screen
  • Inserting Dimensions
  • Inserting Functions
  • Inserting Parameter
  • Creating, Editing and Designating Parameters
