CAM Software for CNC Machining

Increase productivity through more efficient machining and tool path design with milling, tooling, sheet metal, and additive manufacturing

What is CAM software?

While computer-aided engineering (CAE) refers to the use of software to simulate the effects of real-world conditions, computer-aided manufacturing (CAM) is used later in the product development process, where software is used to automate manufacturing processes.

Specifically, CAM software automates the creation of computerized numeric control (CNC) toolpaths by directly referencing 3D CAD geometry. CAM software generates programming instructions that are used to manufacture products and tools.

Why use CAD/CAM software?

CAM in Creo

Creo’s easy-to-use, fully integrated CAM solutions empower engineers, from design and analysis through production and inspection. With capabilities including subtractive machining and tool-making, additive manufacturing, as well as sheet metal, Creo helps engineers optimize designs for manufacturability - cutting down production time and minimizing errors - resulting in higher quality products and faster time-to-market. Deliver your best designs in less time with Creo CAM solutions.

Creo CAM Solutions

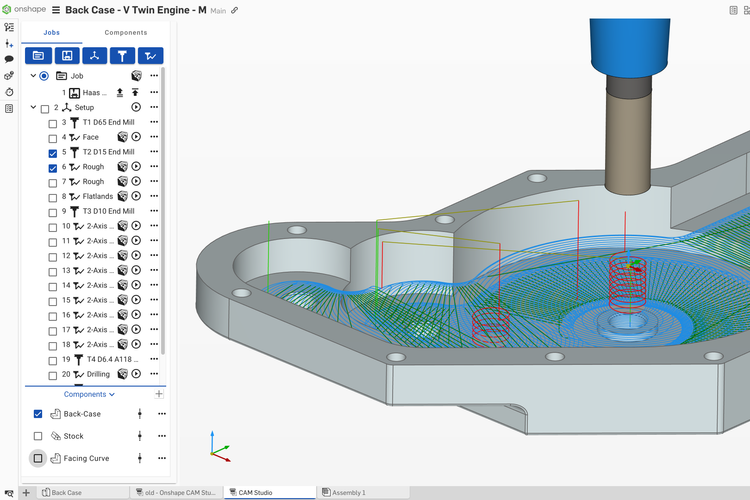

Accelerate production with Onshape’s cloud-native CAM Studio

Onshape’s cloud-native platform enables users to create precise CAM tool paths from desktops to lightweight laptops. With real-time collaboration and built-in version control, teams stay aligned and accelerate the journey from design to production. Onshape’s CAM Studio provides robust CNC strategies for drilling, roughing, milling, and finishing operations, supporting everything from prototyping to full-scale production. It’s a complete, flexible solution for modern manufacturing needs.

Onshape CAM Studio

overlaycontent

What is the difference between CAD and CAM?

CAD software is used to design 3D parts and assembly models. This software directly references the 3D CAD model geometry to automate the creation of machining toolpaths. CAD/CAM software improves quality and eliminates errors by ensuring CNC toolpaths are updated when CAD geometry is modified.

Benefits of CAM software

Accelerate time to market

CAM software leverages the digital 3D CAD model to automatically generate the code for computerized numerical control (CNC) machines used to produce parts and tools.

CAM software leverages the digital 3D CAD model to automatically generate the code for computerized numerical control (CNC) machines used to produce parts and tools.

Improve cost and quality

CAM software reduces manufacturing times and helps avoid human error in programming the CNC machines.

CAM software reduces manufacturing times and helps avoid human error in programming the CNC machines.

Production of complex forms

CAM software simplifies the manufacturing of complex shapes using advanced machining strategies to define complicated tool motions.

CAM software simplifies the manufacturing of complex shapes using advanced machining strategies to define complicated tool motions.

Aerospace and Defense

Today's FA&D manufacturers are required to deliver high-performance, lightweight products. Industry leaders leverage both additive and subtractive manufacturing to achieve diverse goals.

Today's FA&D manufacturers are required to deliver high-performance, lightweight products. Industry leaders leverage both additive and subtractive manufacturing to achieve diverse goals.

Automotive

Tasked with meeting the growing demand for electric vehicles while still delivering legacy internal combustion engine vehicles, auto manufacturers use CAM tools to deliver a variety of high-quality parts at the right price.

Tasked with meeting the growing demand for electric vehicles while still delivering legacy internal combustion engine vehicles, auto manufacturers use CAM tools to deliver a variety of high-quality parts at the right price.

Industrial equipment production

Industrial equipment producers are challenged to provide reliable products, as there is little tolerance for downtime. CAM tools help these producers turn designs into reality with high-performance machining processes.

Industrial equipment producers are challenged to provide reliable products, as there is little tolerance for downtime. CAM tools help these producers turn designs into reality with high-performance machining processes.

Oil and Gas

Oil and gas producers depend on extremely reliable product design. CAM tools help these engineers ensure the delivery of high-quality product designs that meet and exceed their production and safety requirements.

Oil and gas producers depend on extremely reliable product design. CAM tools help these engineers ensure the delivery of high-quality product designs that meet and exceed their production and safety requirements.

Consumer product manufacturers

Consumer product manufacturers depend on speed to market and low costs for retail success. CAM tools help companies thrive with the rapid delivery of sample prototypes and injection molding tools and dies.

Consumer product manufacturers depend on speed to market and low costs for retail success. CAM tools help companies thrive with the rapid delivery of sample prototypes and injection molding tools and dies.

Life science manufacturers

Life science manufacturers are asked to deliver everything from customer medical parts to high-volume disposables and pharmaceuticals. To meet rigorous industry standards, CAM tools help producers expedite the delivery of these high-quality, life-changing products.

Life science manufacturers are asked to deliver everything from customer medical parts to high-volume disposables and pharmaceuticals. To meet rigorous industry standards, CAM tools help producers expedite the delivery of these high-quality, life-changing products.

Capabilities of computer-aided manufacturing

Tool and die in Creo

Creo offers easy-to-use tool and die solutions for creation of mold base, core and cavity, progressive dies, and toolpaths for coordinate measuring machines (CMM). All are fully integrated into Creo for a seamless workflow.

Tool and Die in Creo

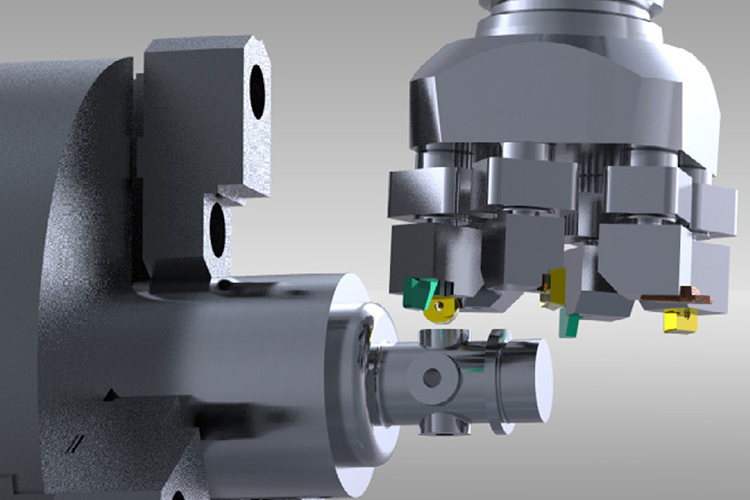

Production machining in Creo

Creo offers easy-to-use production machining solutions for milling, turning, sheet metal, hole-making, and wire EDM processes. All are fully integrated into Creo for a seamless workflow.

Production Machining Brochure

CAM and additive manufacturing in Creo

With Creo, you can design, optimize, validate, and run a print check all in one environment, reducing overall process time, tedium, and mistakes. When you're ready, simply send the file straight to the 3D printer. You can design for additive manufacturing in polymers and in metal, and then connect directly to your chosen printer with its optimized printer profile and support structures.

Explore Additive Manufacturing

Creo high-speed milling

Reduce milling times and tool wear in complex 3 and 5 Axis Machining operations.

High-Speed Milling Extensions

Onshape CAM Studio

Onshape’s cloud-native CAM lets users create toolpaths, collaborate in real-time, and accelerate manufacturing with built-in version control.

Explore CAM Studio

How is CAM software used by manufacturers?

MAN-energy-solutions-margin

Brasseler

Brasseler uses Creo’s Numerical Control and 3D-modeling capabilities to improve the design and manufacturing process.

View Case Study

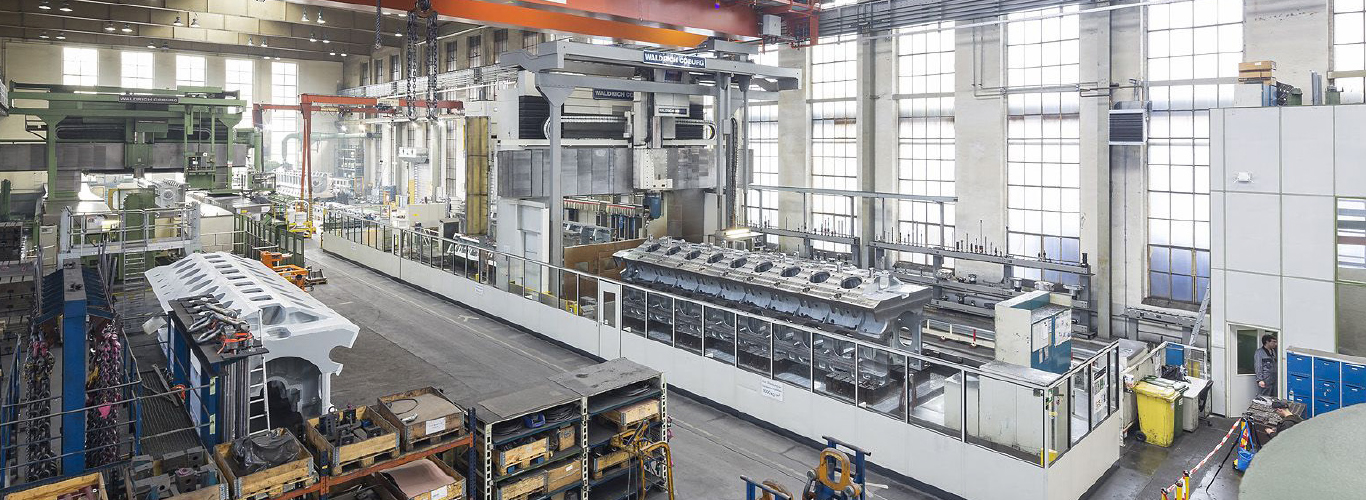

MAN Energy Solutions

MAN ES leveraged Creo CAM to automate processes and improve throughput.

View Case Study

CAD/CAM frequently asked questions

How does CAD/CAM improve manufacturing quality?

CAD/CAM improves communication and collaboration between engineering and manufacturing.  CAD/CAM leverages 3D digital models to enable the production of parts and tools. CAM software can automatically create detailed manufacturing instructions for numeric control machining centers, avoiding human errors.

How does CAM software work?

CAM software directly references the 3D CAD model geometry to automatically generate instructions for Computerized Numerical Control (CNC) machines. Multiple sequences are required to perform roughing and finishing operations. Roughing sequences use a large cutting tool to rapidly remove large volumes of stock material. Finishing operations use smaller cutting tools to remove the remaining stock material. Advanced machining strategies provide multi-axis tool control to remove material in hard-to-reach areas of the model. When all sequences are defined, the machining instructions are output to a CNC-readable language—generally called G-codes. CNC machines read the G-codes and perform the machining operations to manufacture the part.

Does Creo have CAM?

Creo has a wide variety of CAM capabilities to help you turn your CAD models into physical parts. Creo extensions are available to help you execute a wide variety of manufacturing functions, including milling, hole-making, turning, wire EDM, sheet metal, and computer-aided verification. You can use many of these extensions for creation of tools and dies. Creo also has a variety of tools to help with additive manufacturing processes.

Who uses CAM software?

Manufacturing engineers use CAM software to define machining instructions for the manufacture of parts and tools from 3D digital CAD models. Quality teams also use CAM software to define digital inspection. Coordinate Measuring Machines (CMM) are similar to CNC machines but perform inspection routines to verify the accuracy of manufactured components. Using CMM eliminates manual effort to verify part tolerances and accuracy. 
