Article - CS403968
Name of Sub-assemblies changed when Solidworks assembly it's imported to Creo Parametric
Modified: 08-Dec-2023
Applies To
- Windchill PDMLink 12.1
Description
Importing Solidworks CAD Assemblies from Windchill to Creo Parametric the sub-assemblies change their names
Steps to reproduce
- Load a Solidworks CAD Assembly containing Sub-assemlies to Windchill
- Open Top Assembly in Creo Parametric using Open in Creo Parametric option
- Use default configuration for the import and uncheck "Enable ATB" option

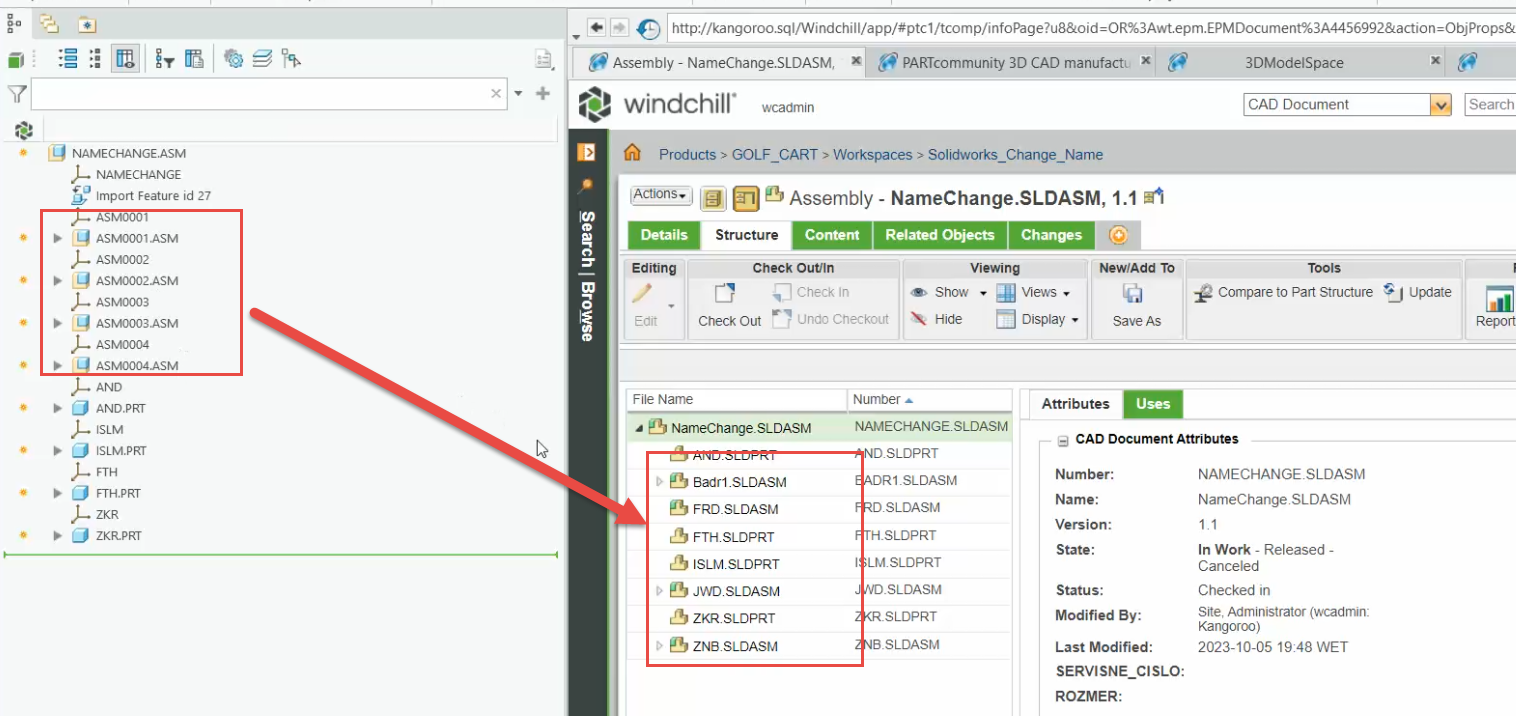

- In Creo Parametric CAD model Tree All sub-assemblies names are changed to ASM0001.ASM, ASM0002.ASM....
This is a printer-friendly version of Article 403968 and may be out of date. For the latest version click CS403968
