Article - CS168052
ECAD assembly does not export sub-assembly when saving model as EMN file in Creo Parametric
Modified: 27-May-2024
Applies To
- Pro/ENGINEER and Creo Elements/Pro Wildfire 5.0
- Creo Parametric 1.0 to 10.0
Description
- EMN export of a PCB assembly will only include components with their ecad coordinate system created a specific way

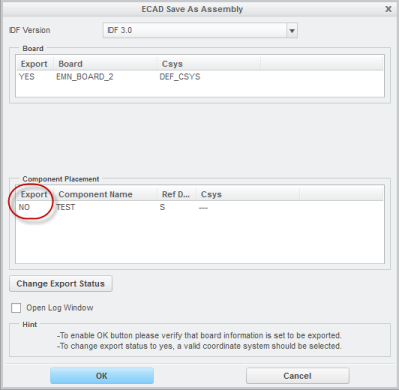

- Assembly component placement reports NO when the coordinate system is defined by references other than the 3 default datum planes in the assembly
