Article - CS158645
When measuring an angle between faces in Creo 2.0, the reference lines seem to be incorrect
Modified: 11-May-2017
Applies To
- Creo Parametric 1.0 to 4.0
Description
- Measuring between faces give correct angle but reference line direction seems incorrect
- Reference line appears backwards when measuring angle between faces.
- When measure angle between faces, the reference lines are showing the Face Normal direction which can be confusing

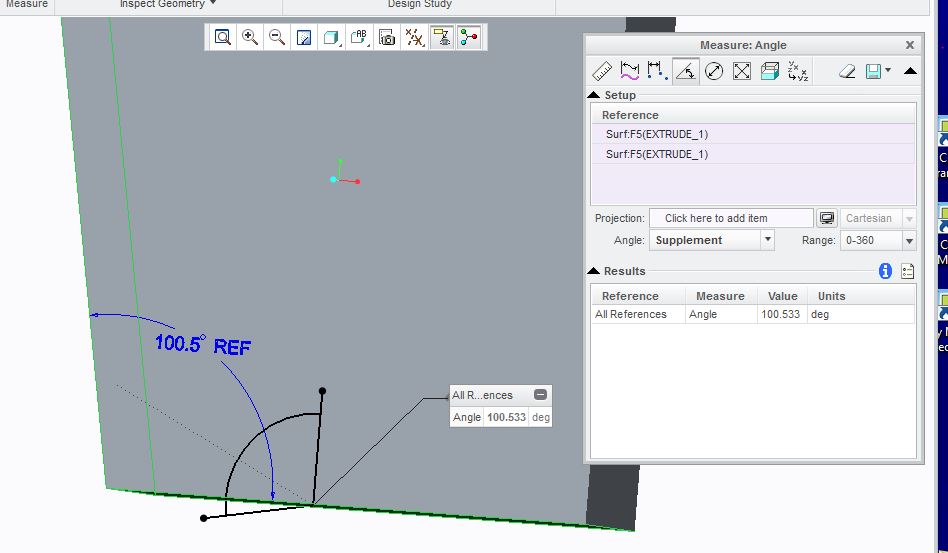

- Measure face shows black references which appear backwards (facing away from part).
-
