Article - CS143385
'IEForbiddenException' error when invoking an Info*Engine task via SOAP or the IE servlet / web browser in Windchill
Modified: 12-Apr-2024
Applies To
- Windchill PDMLink 10.2 to 12.1
Description
- How to enable/disable tasks whitelist
- How to specify access directive protocols for an Info*Engine task
- IEForbiddenException is thrown if fetch data with object_ref
- What is the difference in Info*Engine xml execution between Windchill PDMLink 10.1 and 12.1
- MethodServer reports WTAdapterImpl com.infoengine.exception.fatal.IEForbiddenException error
- Unable to access Info*Engine task from web browser URL with IEForbiddenException
- URL Syntax
http://<server_name>/Windchill/servlet/IE/tasks/<PATH>/<TO>/<task_name>.xml?param1=value1¶m2=value2
- Sample error when invoking an I*E Task from the IE servlet
wt.adapter.exception <user> - WTAdapterImpl com.infoengine.exception.fatal.IEForbiddenException at com.infoengine.SAK.Task.checkAccessIfcs(Task.java:2332) at com.infoengine.SAK.Task.invoke(Task.java:1803) at com.infoengine.SAK.Task.invokeAndCheckExternalAccess(Task.java:1703) at wt.method.WTAdapterImpl.processTask(WTAdapterImpl.java:711) at wt.method.WTAdapterImpl.processRequest(WTAdapterImpl.java:481) at com.infoengine.procunit.adapter.Adapter.send(Adapter.java:198) at com.infoengine.IeServlet$RequestDispatcher.run(IeServlet.java:464) at com.infoengine.IeServlet.doGet(IeServlet.java:247)

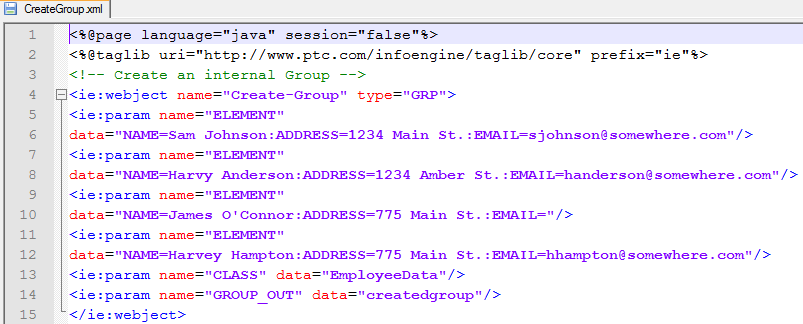

- The info*engine task like below picture can't be executed from IE browser after upgrading system from 10.0 to 10.2

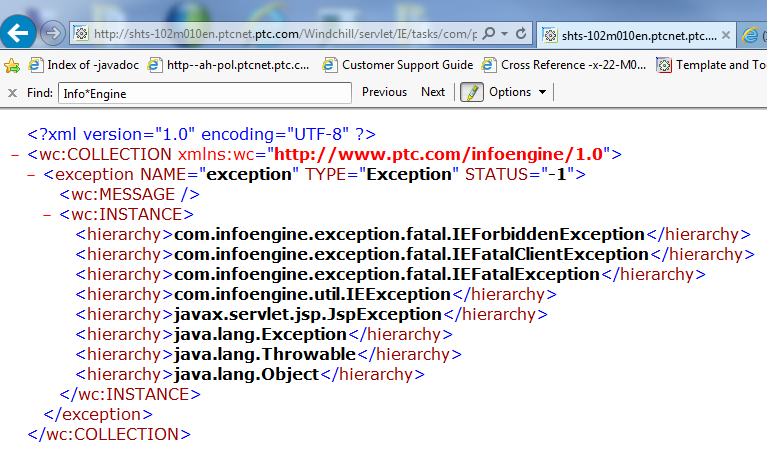

- The IE browser show error message
