Simulation and analysis are invaluable for finding potential problems with a design. But what happens when a feature, like a weld, isn’t recognized by the simulation? Now with Creo 4.0, welds on sheet metal parts can be created as solids and measured, simulated, and analyzed. Here’s how:
Create a Solid Weld
The process is simple, and hasn’t changed much.
- In the Insert group on the Weld tab, click a weld type: Fillet, Butt or Plug/Slot.
- Select references to create solid welds.
- Click the Options tab.
- Select Solid for the geometry type.
Selecting the Solid geometry type when creating a weld.
Measure Between a Weld and Another Solid
Now you can interact with the weld just like any other solid. For example, you can measure from the surface, edge, or groove of the weld:
- In the Measure group on the Analysis tab, click Measure and then select Distance.
- For this example, we’ll select the surface of the weld.

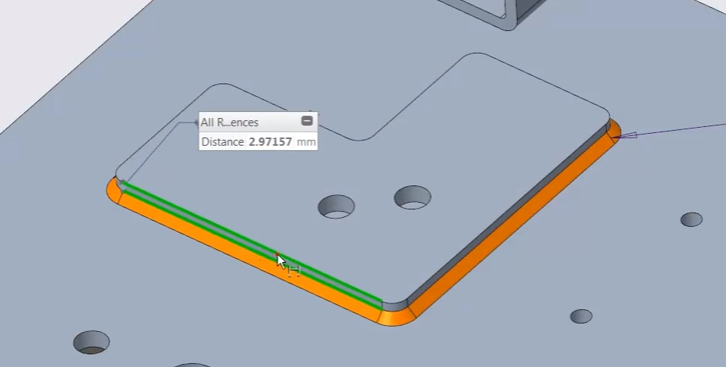

Measuring the distance between a weld surface and an edge.
- Select an edge of another solid on the model.
When it’s time to run a simulation, you can be confident that the weld will be treated like any other solid.
Watch the Demo
You can see a brief demo of these tips in the video below.
To learn more, read the PTC Creo Help Center page, Solid Weld.
