In Creo Advanced Framework Extension (AFX), moving one profile is easy. Moving two or more can be tedious…until now. In Creo 4.0, moving multiple profiles in Creo AFX now is as easy as moving one. Here’s how you do it:

Select Profiles

You can select one or more profiles before or after you start the Move command. Let’s select a couple of profiles before we start.

To pre-select profiles, hold Ctrl and select multiple profiles.

  Two profiles selected

Selecting two profiles before clicking Move.

Move Profiles

Now let’s move the profiles in one step.

  1. In the Profiles group on the Framework tab, click Move.
  2. Select more profiles, if you like.

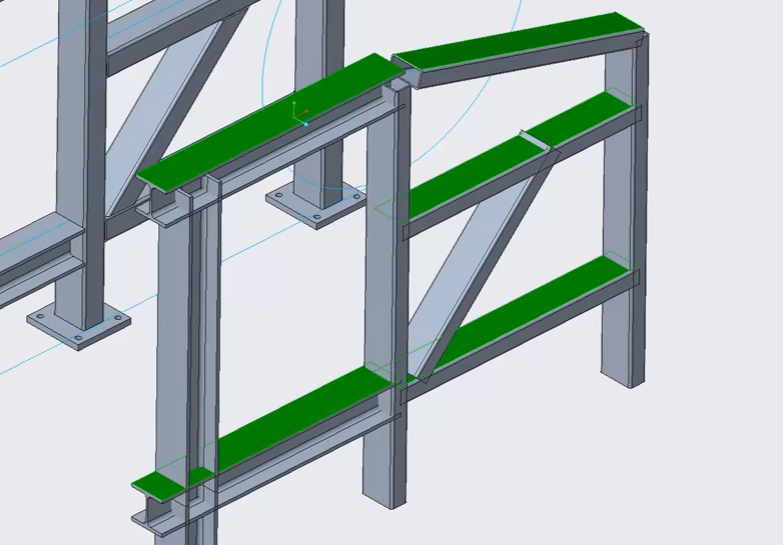

     Selecting multiple profiles

    Selecting three more profiles after clicking Move.


  3. Click a positioning icon in the Move section of the dialog.


    You can move the profiles relative to their references, for example top left, center middle, bottom right, etc. You can also move by specific values, align with reference geometry, or rotate the profiles.

     Once you move the profiles you'll see a preview.

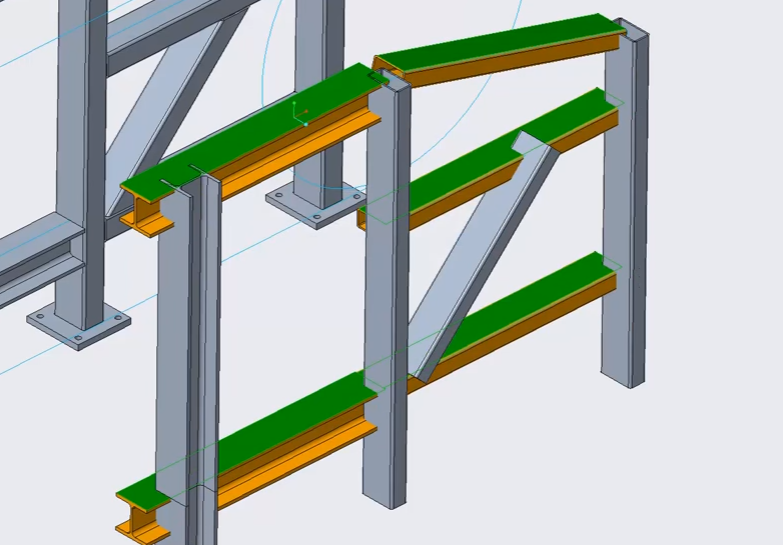

     Move preview

    Previewing after moving the profiles back.

  4. When you're happy with the position of the profiles, click OK.


Watch the Demo

You can see a brief demo of these tips in the video below.
